Q20HE-1090R定向耦合器
Q20HE-1090R定向耦合器
首要性能

Q20HE-1090R定(ding)向(xiang)委培解(jie)耦器(qi)頻段：0.96 – 1.22 GHz藕合(he)：20聲音頻率±1聲音頻率合(he)體十分平整光滑度：±0.5dB領域性：20聲貝駐(zhu)波比：1.2:1插入圖耗(hao)損：0.15dB電功(gong)率：400瓦監測板722-0006-05-E01購貨壽命：6-8周

品牌：Electro-Photonics

車輛祥情解釋

960-1220 MHz Directional Coupler

The Q20HE-1090R is a broadband, bi-directional coupler with high directivity and high power handling. It is suitable for LTE mobile broadband, UHF television, GSM, and more…

Specifications

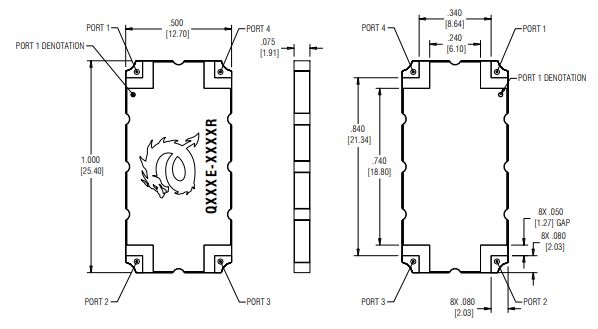

  • Size: 1.00 x 0.50 inches
  • Frequency: 0.96 – 1.22 GHz
  • Coupling: 20 dB ± 1 dB
  • Coupling Flatness: ± 0.5 dB
  • Directivity: 20 dB
  • VSWR: 1.2:1
  • Insertion Loss: 0.15 dB
  • Power: 400 W
  • Evaluation board 722-0006-05-E01
