0.5-18GHz和2-18GHz高特點PIN穩壓管打開MITEQ
披露(lu)日(ri)期：2024-03-29 08:56:24 查詢：929

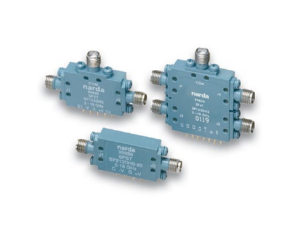

MITEQ 0.5至18 GHz和(he)2至18
GHz高質量指(zhi)標PIN打(da)(da)開系(xi)(xi)類作品帶(dai)來了了迅速的(de)(de)打(da)(da)開運行速度和(he)低放進去耗(hao)損，打(da)(da)包封裝緊(jin)奏型。這么(me)多打(da)(da)開選(xuan)用Narda知名(ming)纖薄系(xi)(xi)類作品相(xiang)同之處的(de)(de)集成(cheng)運放設計，適當連到選(xuan)用中需(xu)不需(xu)要堅決最薄配資的(de)(de)的(de)(de)場所。4個參數均(jun)標準配置包括反相(xiang)電壓降庇護(hu)實用功(gong)能(neng)的(de)(de)整(zheng)體功(gong)效夠器(qi)，能(neng)夠器(qi)與TTL兼容(rong)，據4個rf射(she)頻集成(cheng)運放的(de)(de)亮點實施制定，以確保(bao)安全生產更好的(de)(de)打(da)(da)開功(gong)效指(zhi)標。嬌小(xiao)玲瓏、快速路、帶(dai)寬、低放進去耗(hao)損使(shi)這么(me)多打(da)(da)開變為光電子戰(zhan)操作系(xi)(xi)統、自己試驗機(ji)械和(he)模擬訓練器(qi)的(de)(de)理想型確定。
特點：
- 搭(da)載 SPST 直通式 SP6T 和傳輸數據 (規(gui)范) 功用(yong)
- 高運行：15 ns
- 高要進行隔離(li)度：高達(da)hg80dB
- 低讀取損失
- 尺寸大小(xiao)緊密
- 集成化 TTL 驅動包(bao)器
- 密封設汁
產品選型：
Reflective Switches,SMA (F),0.5 to 18 GHz |
MODEL | TYPE | SWITCHING TIME
MODULATION
(ns) | BAND
SEGMENTS
(GHz) | INSERTION
L05S
dB max.) | VSWR
(max.) | S0LATION
dB min.) | POWER
HANDLING
(mW) | POWER
REQUIRE
mA@+5V | SUPPLY
MENTS
mA@-12V |
SP212DHS | SPST | 15 | 0.5-2
2-12
12-18 | 1.2
2.1
2.6 | 1.6
1.9
2.0 | 70
70
70 | 200 | 50 | 50 |
SP212DHS-80 | SPST | 15 | 0,5-2
2-12
12-18 | 1.2
2.2
2.7 | 1.6
1.9
2.0 | 80
80
80 | 200 | 50 | 50 |
SP122DHS | SP2T | 20 | 0.5-2
2-12
12-18 | 1.5
2.4
2.9 | 1.8
2.0
2.0 | 70
65
60 | 200 | 90 | 60 |
SP132DHS | SP3T | 20 | 0.5-2
2-12
12-18 | 1.5
2.5
3.0 | 1.8
2.0
2.0 | 70
65
60 | 200 | 90 | 60 |
SP142DHS | SP4T | 20 | 0,5-2
2-12
12-18 | 1.6
2.6
3.2 | 1.8
2.0
2.0 | 70
65
60 | 200 | 110 | 70 |
SP152DHS | SP5T | 20 | 0.5-2
2-12
12-18 | 2.0
3.0
3.6 | 1.8
2.0
2.0 | 70
65
60 | 200 | 220 | 90 |
SP162DHS | SP6T | 20 | 0.5-2
2-12
12-18 | 2.0
3.0
3.6 | 1.8
2.0
2.0 | 70
65
60 | 200 | 220 | 100 |
Absorptive Switches,SMA(F),0.5 to 18 GHz |
MODEL | TYPE | SWITCHING TIME
MODULATION
(ns) | BAND
SEGMENTS
GHz) | INSERTION
L05S
dB max. | VSWR
(max. | ISOLATION
dB min | POWER
HANDLING
(mW | POWER SUP
mA@+5V | PLY REQUIREMENTS
mA@-12Vto-15V |
SP212DHTS | SPST | 30 | 0.5-12
12-18 | 2.4
2.8 | 1.9
2.0 | 55
50 | 200 | 50 | 60 |
SP122DHTS | SP2T | 30 | 0.5-12
12-18 | 2.7
3.1 | 1.9
2.0 | 60
55 | 200 | 60 | 60 |
SP132DHTS | SP3T | 30 | 0.5-12
12-18 | 2.9
3.4 | 1.9
2.0 | 60
45 | 200 | 105 | 75 |
SP142DHTS | SP4T | 30 | 0.5-12
12-18 | 2.9
3.4 | 1.9
2.0 | 60
45 | 200 | 110 | 80 |
SP152DHTS | SP5T | 30 | 0.5-12
12-18 | 3.3
4.0 | 2.0
2.0 | 60
50 | 200 | 220 | 90 |
SP162DHTS | SP6T | 30 | 0.5-12
12-18 | 3.3
4.0 | 2.0
2.0 | 60
50 | 200 | 250 | 100 |
Reflective Switches,SMA (F),2 to 18 GHz |
MODEL | TYPE | SWITCHING TIME
MODULATION
(ns) | BAND
SEGMENTS
(GHz) | INSERTION
L05S
dB max.) | VSWR
(max.) | ISOLATION
(dB min.) | POWER
HANDLING
(mW) | POWER SUPPLY
REQUIREMENTS
mA@+5V mA@-12V |
SP213DHS | SPST | 15 | 2-12
12-18 | 1.9
2.4 | 1.9
2.0 | 50
60 | 500 | 50 | 60 |
SP213DHS-80 | SPST | 15 | 2-12
12-18 | 1.9
2.5 | 1.9
2.0 | 70
80 | 500 | 50 | 50 |
SP123DHS | SP2T | 15 | 2-12
12-18 | 2.4
2.9 | 1.9
2.0 | 65
60 | 200 | 90 | 60 |
SP123DHS-80 | SP2T | 15 | 2-12
12-18 | 2.2
2.9 | 2.0
2.0 | 80
80 | 200 | 90 | 60 |
SP133DHS | SP3T | 15 | 2-12
12-18 | 2.6
3.0 | 1.9
2.0 | 65
60 | 200 | 110 | 70 |
SP143DHS | SP4T | 15 | 2-12
12-18 | 2.6
3.0 | 1.9
2.0 | 65
60 | 200 | 110 | 70 |
SP153DHS | SP5T | 20 | 2-12
12-18 | 3.0
3.6 | 2.0
2.0 | 65
60 | 200 | 220 | 90 |
SP163DHS | SP6T | 20 | 2-12
12-18 | 3.0
3.6 | 2.0
2.0 | 65
60 | 200 | 250 | 100 |
Transfer Switches,SMA(F),2 to 18 GHz |
MODEL | TYPE | SWITCHING
TIME
(ns) | BAND
SEGMENTS
(GHz) | INSERTION
L05S
(dB max. | VSWR
(max.) | ISOLATION
(dB min.) | POWER
HANDLNG
(mW) | POWER
REQUIR
mA@+5V | SUPPLY
EMENTS
mA@-12V |
XSP323DHS | XFER | 50 | 2-12
12-18 | 2.8
3.4 | 2.0
2.0 | 60
65 | 200 | 90 | 80 |
Absorptive Switches,SMA(F),2 to 18 GHz |
MODEL | TYPE | SWITCHING TIME
MODULATION
(ns) | BAND
SEGMENTS
(GHz) | INSERTION
L05S
(dB max.) | VSWR
(max.) | ISOLATION
(dB min.) | POWER
HANDLING
(mW) | POWER
REQUIR
mA@+5V | SUPPLY
EMENTS
mA@-12V |
SP213DHTS | SPST | 25 | 2-12
12-18 | 2.1
2.5 | 1.9
2.0 | 55
50 | 200 | 40 | 60 |
SP213DHTS-80 | SPST | 25 | 2-12
12-18 | 2.1
2.6 | 1.9
2.0 | 70
80 | 200 | 50 | 60 |
SP123DHTS | SP2T | 25 | 2-12
12-18 | 2.5
2.9 | 1.9
2.0 | 60
55 | 200 | 60 | 60 |
SP133DHTS | SP3T | 25 | 2-12
12-18 | 2.7
3.2 | 1.9
2.0 | 60
45 | 200 | 105 | 75 |
SP143DHTS | SP4T | 25 | 2-12
12-18 | 2.7
3.2 | 1.9
2.0 | 60
45 | 200 | 105 | 75 |
SP153DHTS | SP5T | 25 | 2-12
12-18 | 3.2
3.8 | 2.0
2.0 | 60
50 | 200 | 220 | 90 |
SP163DHTS | SP6T | 25 | 2-12
12-18 | 3.2
3.8 | 2.0
2.0 | 60
50 | 200 | 250 | 100 |
珠海市立維創展自動化不多裝修公司，措施荷蘭總總部地形氣候特色，對于MITEQ服務線，盡(jin)管收購兼并該如何變換(huan)，仍舊擅于MITEQ車(che)輛線進貨(huo)途徑和售后維修服務的服務的蘋果支(zhi)持，歡迎大(da)家了解。
