93(x)題材有源倍頻器Mi-Wave

發部(bu)時刻：2024-11-06 17:17:44     瀏覽訪問：799

Mi Wave的(de)(de)93（x）系(xi)列產(chan)品有源倍頻(pin)器徹底的(de)(de)靈活(huo)運用(yong)功效好MMIC心片構建倍頻(pin)和縮小。

本質特征

?高至(zhi)全波導頻段復蓋

?可(ke)以低(di)發送驅動軟件電平(ping)

?較低諧波直流電

?高輸(shu)入輸(shu)出(chu)工作功率

APP

?測試圖片實驗室

?子元件

?本地化自由振蕩器

?5G和(he)6G作業控制系統(tong)

東莞市立維創展科技信息非常有限子公司授權文件代銷商賣出Mi-Wave厘米(mi)波(bo)(bo)品牌，Mi-Wave是民用(yong)型和民品用(yong)公分(fen)波(bo)(bo)產品的(de)設(she)備全(quan)球(qiu)各地引航(hang)者(zhe)，能出(chu)具公分(fen)波(bo)(bo)電(dian)子(zi)器件和組(zu)件應對改進方(fang)案。產品的(de)設(she)備線區域：擴大器、混頻(pin)器、衰減器、濾(lv)波(bo)(bo)器、面板開關、T/R、外(wai)置天線、反射層鏡(jing)等，所包括(kuo)平率高達到320GHz。的(de)歡迎咨詢公司。



Model NumberInput Low Frequency (GHz)Input High Frequency (GHz)Output Low Frequency (GHz)Output High Frequency (GHz)Input Power (dBm)Output Power (dBm)Input PortOutput PortDC BiasX Factor
932-10/20/10/SMAF-25101020+11 to 16 nominal, +17 max.+7 to +10 nominalSMA-FeamleSMA-Feamle+8V@105mA,+12V max.2
932AF-20/599/KF13.252026.5400 to +5 nominal, +10 max.20 nominalK-FemaleWR-28 waveguide, UG-599/U Flange+8 V@470mA,+15 V max.2
932KF-10/KF913.251826.5+5 nominal, +10 max+15 nominalK-FemaleK-Female+8 V@82 mA,+15 V max.2
932KF-30/3.5mmF913.251826.5+3 to +5 nominal, +10 max.+31 nominal3.5 mm Female3.5 mm Female+6V@1.35A, +12 V max.2
934BF-10/3838.2512.53350+2 nominal, +5 max.+10 nominalK-Female/SMA- FemaleWR-22 waveguide, UG-383/U Flange+8V@0.250 A,+12V max.4
934BF-13/3838.2512.533500 to +2 nominal, +5 max.+14.5 nominalK-Female/SMA- FemaleWR-22 waveguide, UG-383/U Flange+8V@0.280 A,+12V max.4
934EF-20/3871522.56090+5 to +7 nominal, +12 max.+20 nominalK-Female/SMA- FemaleWR-12 waveguide, UG-387/U Flange+6 to +8V@650mA,+12V max.4
934UF-10/383101540600 nominal, +10max.+13 nominalK-Female/SMA- FemaleWR-19 waveguide, UG-383/U-M Flange+6V@143mA,+6V max.4
934VF-10/38512.518.755075+5 nominal, +10 max.+11 nominalK-Female/SMA- FemaleWR-15 waveguide, UG-385/U Flange+8V@270mA,+15V max.4
934VF-15/38512.518.755075+5 nominal, +10 max.+15 nominalK-Female/SMA- FemaleWR-15 waveguide, UG-385/U Flange+10V@321mA,+15V max.4
936EF-10/38710156090+4 nominal,+10 max.+13 nominalK-Female/SMA- FemaleWR-12 waveguide, UG-387/U Flange+6V@237mA,+12V max.6
936EF-20/387H10156090+5 nominal, +10 max.+20 nominalK-Female/SMA- FemaleWR-12 waveguide, UG-387/U Flange+6V@540mA,+12V max.6

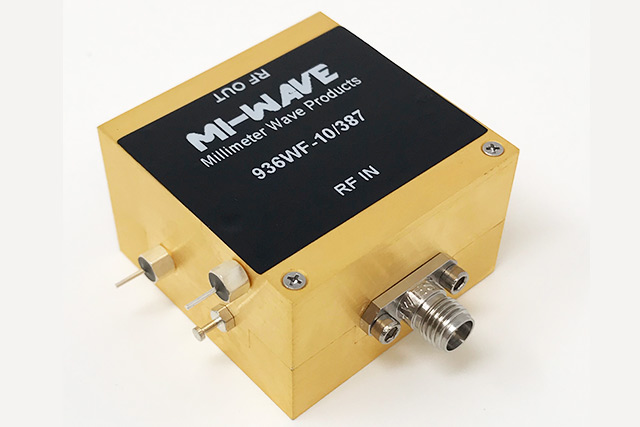

936WF-10/38712.518.3375110+6 nominal,+10 max.+10 nominalK-Female/SMA- FemaleWR-10 waveguide, UG-387/U-M Flange+6V@309mA,+12V max.6
936WF-15/38712.518.3375110+5 to+10 nominal, +15 max.+16 nominalK-Female/SMA- FemaleWR-10 waveguide, UG-387/U-M Flange+12V@500mA,+15V max.6
936WF-20/38712.518.3375110+5 to+10 nominal, +15 max.+20 nominalK-Female/SMA- FemaleWR-10 waveguide, UG-387/U-M Flange+13V@410mA,+15V max.6
938EF-16/387H7.511.256090+3 to +5 nominal, +10 max.+17 nominalK-Female/SMA- FemaleWR-12 waveguide, UG-387/U Flange+8V@590mA,+12V max.8
938W-80/106/15/3888.911.7880106+7 nominal, +10 max.+15 nominalK-Female/SMA- FemaleWR-10 waveguide, UG-387/U-M Flange+13V@180mA,+15V max.9
938WF-10/3871013.2580106+7 nominal, +10 max.+15 nominalK-Female/SMA- FemaleWR-10 waveguide, UG-387/U-M Flange+6V@180mA,+12V max.8
