HEROTEK零偏置肖特基電感檢波器100 KHz至50 GHz

發布公告精力：2020-10-26 16:06:45 瀏覽網頁：3160

肖特基肖特基二極(ji)管是由黑色金屬-半導(dao)設備成分成的(de)半導(dao)設備電感，兼具正在向輸出功率(lv)低、電源開(kai)關高速度(du)比較快的(de)特征。與(yu)內似運用中的(de)點排斥電感相對于，HEROTEK零偏置肖特基肖特基二極管兼具更寬的動態圖範圍、更加高的熱平穩性和更明確的平律性質。HEROTEK零偏置肖特基場效應管檢波器不禁適用于精密模具試驗系統化、發送機、外接電源、信號燈監測方案和空空導彈制導系統化，還適用作微波射頻輸出發現器。

零偏肖(xiao)特基電感測探器(qi)的(de)兩(liang)個心智成熟采(cai)用是分(fen)(fen)米左右波(bo)和(he)亞(ya)分(fen)(fen)米左右波(bo)輸出功率(lv)檢(jian)側，在本身(shen)采(cai)用中能夠(gou)更有效(xiao)地檢(jian)側和(he)混合型喂養從(cong)微波(bo)加熱到太赫茲的(de)電磁感應擴散(san)。

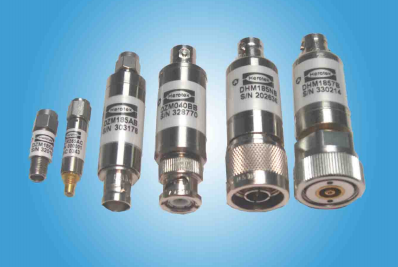

HEROTEK零偏置肖特基二極管檢波器

HEROTEK零偏置肖特基(ji)電感測探器的功能

沒得誤差率

搭配設置以達到經驗豐富(fu)的駐波比

速度(du)運行是非(fei)常非(fei)常平整

十分高的(de)靈巧度(du)

HEROTEK零偏肖特基肖特基二極管探測(ce)器(qi)器(qi)的技(ji)術(shu)應(ying)用

緊(jin)密(mi)檢(jian)測機

渦街流(liu)量計網絡監控

電源開關和數據監察

雷達探(tan)測或彈(dan)道導彈(dan)制導設備

科學試驗室測試英文

南京市(shi)立(li)維創(chuang)展科技(ji)發展有限廠家廠家，商標授權(quan)POS機代理營銷HEROTEK成品(pin)，成品(pin)涉及到檢(jian)波器、變成器、限幅器、PIN按鈕(niu)、4g信號等離子發(fa)生器等，HEROTEK服務無法優秀的性(xing)能(neng)參數，高可靠的性(xing)和更快托付，迎接咨詢中(zhong)心(xin)。

MODEL 1, 2	FREQUENCY RANGE	MAXIMUM VSWR	MAXIMUM FLATNESS (± dB)	LOW LEVEL SENSITIVITY (mV / mW)	CONNECTOR		SIZE (INCHES)		OUTLINE
MODEL 1, 2	FREQUENCY RANGE	MAXIMUM VSWR	MAXIMUM FLATNESS (± dB)	LOW LEVEL SENSITIVITY (mV / mW)	INPUT	OUTPUT	LENGTH	DIA	OUTLINE
DZR124AA	10 MHz – 12.4 GHz	1.25:1	0.3	0.5	SMA (M)	SMA (F)	1.05	0.32	A
DZR124AC	10 MHz – 12.4 GHz	1.25:1	0.3	0.5	SMA (M)	SMC (M)	1.47	0.32	AC2
DZR185AA	10 MHz – 18.5 GHz	1.25:1	0.5	0.5	SMA (M)	SMA (F)	1.05	0.32	A
DZR185AC	10 MHz – 18.5 GHz	1.25:1	0.5	0.5	SMA (M)	SMC (M)	1.47	0.32	AC2
DZR265AA	10 MHz – 26.5 GHz	1.3:1 (to 18.5 GHz) 2.0:1 (to 26.5 GHz)	0.5 (to 18.5 GHz) 1.0 (to 26.5 GHz)	0.5	SMA (M)	SMA (F)	1.05	0.32	A
DZR265AC	10 MHz – 26.5 GHz	1.3:1 (to 18.5 GHz) 2.0:1 (to 26.5 GHz)	0.5 (to 18.5 GHz) 1.0 (to 26.5 GHz)	0.5	SMA (M)	SMC (M)	1.47	0.32	AC2
DZM020AA	100 KHz - 2.0 GHz	1.3:1	0.1 (per 100 KHz) 0.3 (overall)	0.5	SMA (M)	SMA (F)	1.05	0.32	A
DZM020BB	100 KHz - 2.0 GHz				BNC (M)	BNC (F)	2.48	0.68	BB3
DZM040AA	100 KHZ - 4.0 GHz				SMA (M)	SMA (F)	1.05	0.32	A
DZM040BB	100 KHZ - 4.0 GHz				BNC (M)	BNC (F)	2.48	0.68	BB3
DZM124AA	10 MHz – 12.4 GHz	1.2:1 (to 4.5 GHz) 1.3:1 (to 7 GHz) 1.4:1 (to 12.4 GHz)	0.2 (per octave) 0.5 (overall)	0.5	SMA (M)	SMA (F)	1.05	0.32	A
DZM124AB					SMA (M)	BNC (F)	2.50	0.56	AB3
DZM124NB					Type N (M)	BNC (F)	2.46	0.75	NB3
DZM185AA	10 MHz – 18.5 GHz	1.2:1(to 4 GHz) 1.5:1(to 18.5 GHz)	(per octave to 8 GHz) (for 10 MHz to 8 GHz) 0.5 (overall)	0.5	SMA (M)	SMA (F)	1.05	0.32	A
DZM185AB					SMA (M)	BNC (F)	2.50	0.56	AB13
DZM185AB2					SMA (M)	BNC (F)	1.89	0.39	AB23
DZM185AC					SMA (M)	SMC (M)	1.20	0.32	AC1
DZM185NB					Type N (M)	BNC (F)	2.46	0.75	NB3
DZM1857B					APC-7	BNC (F)	2.59	0.75	7B3
MODEL 1, 2	FREQUENCY RANGE	MAXIMUM VSWR	MAXIMUM FLATNESS (± dB)	LOW LEVEL SENSITIVITY (mV / mW)	CONNECTOR		SIIZE (INCHES)		OUTLINE
MODEL 1, 2	FREQUENCY RANGE	MAXIMUM VSWR	MAXIMUM FLATNESS (± dB)	LOW LEVEL SENSITIVITY (mV / mW)	INPUT	OUTPUT	LENGTH	DIA	OUTLINE
DZM265AA	10 MHz-26.5 GHz	1.2:1 (to 4 GHz) 1.5:1 (to 18 GHz) 1.8:1 (to 26.5 GHz)	0.2 (per octave to 8 GHz) 0.5 (for 10 MHz to 18 GHz) 1.0 (overall)	0.5	SMA (M)	SMA (F)	1.05	0.32	A
DZM265AB					SMA (M)	BNC (F)	1.89	0.39	AB23
DZM265AC					SMA (M)	SMC (M)	1.20	0.32	AC1
DZM2653B					APC3.5 (M)	BNC (F)	1.89	0.39	3B3
DZM2653C					APC3.5 (M)	SMC (M)	1. 70	0.38	3C3
DZR400KA	10 MHz – 40 GHz	1.3:1 (to 18 GHz) 1.8:1 (to 40 GHz)	0.3 (to 18 GHz) 0.6 (to 26 GHz) 1.0 (to 40 GHz)	0.4	K* (M) (2.9mm)	SMA (F)	1.30	0.32	C1
DZR400KB					K* (M) (2.9mm)	BNC (F)	1.89	0.39	KB3
DZR400KC					K* (M) (2.9mm)	SMC (M)	1.35	0.32	KC3
DZR50024A	10 MHz – 50 GHz	1.3:1 (to 18 GHz) 1.6:1 (to 26 GHz) 1.8:1 (to 40 GHz) 2.0:1 (to 50 GHz)	0.3 (to 18 GHz) 0.6 (to 26 GHz) 0.8 (to 40 GHz) 1.0 (to 50 GHz)	0.5	2.4mm (M)	SMA (F)	1.32	0.32	24A3
DZR50024B					2.4mm (M)	BNC (F)	1.91	0.39	24B3
DZR50024C					2.4mm (M)	SMC (M)	1.36	0.32	24C3
DZ1018	1 GHz – 18.0 GHz	8.0:1 (Typical)	1.0 (Typical)	1.8	SMA (M)	SMA (F)	1.16	0.32	B
DZ1026	1 GHz – 26.0 GHz	8.0:1 (Typical)	1.5 (Typical)	1.6	SMA (M)	SMA (F)	1.16	0.32	B
