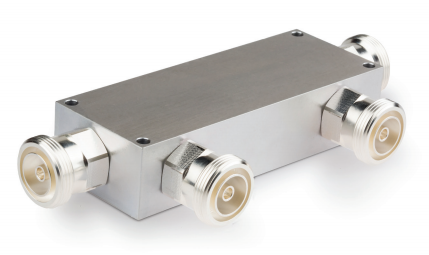

?MegaPhaserf射頻專向耦合電路器
推送事件：2023-03-28 16:45:00 看：1429
MegaPhaserfrf射頻方向合體工器具備多角度面合體電路原理值和頻寬間距以滿意更好地技木廣泛應用和整體市場需求。rfrf射頻方向合體器設計的應用于最多發性的實驗所區域，都可以滿意民品用L波長和的空間系統的按照加強制度建設方法。MegaPhase頻射方向解耦器是可以在廣大芯片封裝和銜接器品類中成功解耦電路設計值、多線程性和復制到損耗量的嚴于公差。
窄帶交叉藕合器：
倍(bei)頻(pin)程和多倍(bei)頻(pin)程幀(zhen)率(lv)段至12GHz
6、10、20和30dB藕合電源電路
必(bi)備(bei)條件(jian)N型、SMA型和(he)2.92mm銜(xian)接器
大瓦數、低放耗率
設定達到MIL-DTL-15370
不適用的工(gong)作環境篩分
窄帶定向委培(pei)交叉耦(ou)合(he)器：
寬帶網絡至26.5GHz
10、16、20dB耦合電路設計電路設計
25W額定功率(lv)處理好
SMA和2.92mm拼接(jie)器(qi)適合(he)
裝(zhuang)修設計(ji)足夠MIL-DTL-15370生(sheng)活環境標(biao)
可來選購
光纖寬帶定向(xiang)生交叉耦合器：
多(duo)倍頻(pin)程帶至18GHz
T6、10、20和30dB合(he)體(ti)電(dian)源線路
50W馬力解決處理
提供N型、SMA型和(he)2.92mm對接器(qi)
方案(an)需求MIL-DTL-15370
實用的環保挑選
MegaPhase公(gong)(gong)厘波元電(dian)(dian)(dian)(dian)子元件封裝開辦(ban)于1998年，是USA著明(ming)的(de)紅外光電(dian)(dian)(dian)(dian)線(xian)(xian)電(dian)(dian)(dian)(dian)纜(lan)(lan)銷售(shou)商。MegaPhase新公(gong)(gong)司(si)結(jie)構(gou)設(she)計和生孩子高可信性(xing)頻射同水平線(xian)(xian)纜(lan)(lan)、接入器的(de)產品(pin)，MegaPhase毫米（mm）波電(dian)(dian)(dian)(dian)纜(lan)(lan)線(xian)(xian)品(pin)牌大范圍APP貼心服務(wu)于徽(hui)波加熱于徽(hui)波加熱于光電(dian)(dian)(dian)(dian)技術系統(tong)，特別(bie)的(de)是檢(jian)測、防(fang)務(wu)電(dian)(dian)(dian)(dian)子無線(xian)(xian)、定位通訊(xun)網(wang)絡、聯(lian)通寬帶(dai)數(shu)據庫(ku)通訊(xun)網(wang)絡等。MegaPhase物料線(xian)(xian)頻帶(dai)寬度可達到到DC-110GHz.
東莞 市立維創(chuang)展科(ke)技(ji)信息管理權限微(wei)商代理銷售(shou)人員MegaPhase新(xin)產品(pin)，常見(jian)具備MegaPhase成品(pin)的穩(wen)相纜(lan)線(xian)和纜(lan)線(xian)配件，并(bing)打造售(shou)后客(ke)服(fu)支持軟件服(fu)務(wu)性，邀請咨詢中心。
商品詳情學習MegaPhase微波電纜請點擊：//dev.www.gyzhkj.com/brand/40.html
Narrow Band Dual Direction Couplers
MegaPhase Model No. | Type | Frequency Range (GHz) | Connectors | Coupling (dB, Nom.) | Frequency Sensitivity (dB, Max.) | Directivity (dB, Min.) | Insertion Loss (dB, Max) | Main Line VSWR | Coupled Line VSWR | Size |
DDC-40N-.17G | Dual 40 dB | .1 to .25 | N-F | 40 | 1 | 20 | 0.55 | 1.25 | 1.35 | 5.00 x 2.00 x 1.25 750 745 740 |
DDC-40NS-.17G | Dual 40 dB | N/SMA-F |
DDC-40NB-.17G | Dual 40 dB | N/BNC-F |
Wide Band Directional Couplers
MegaPhase Model No. | Type | Frequency Range (GHz) | Connectors | Coupling (dB, Nom.) | Frequency Sensitivity (dB, Max.) | Directivity (dB, Min.) | Insertion Loss (dB, Max) | Main Line VSWR | Coupled Line VSWR | Size |
DC27-10S-4G | 10 dB | 0.3 – 8.0 | SMA -F | 10, 20 | 1.2 | 15 | 1 | 1.5 | 1.5 | 6.00 x .73 x .50 |
DC27-20S-4G | 20 dB |
DC36-10S-9.2G | 10 dB | 0.5 – 18.5 | SMA -F | 10, 20 | 1.2 | 12 | 1.6 | 1.8 | 1.8 | 4.40 x .73 x .50 |
DC36-20S-9.2G | 20 dB |
DC9-10S -10G | 10 dB | 2.0-18.0 | SMA -F | 6, 10, 15 20, 30 dB | 1.2 | 12 10 (30 dB) | 1 | 1.8 | 1.8 | 2.25 x .73 x .50 |
DC9-15S-10G | 15 dB |
DC9-20S-10G | 20 dB |
DC9-30S-10G | 30 dB |
Narrow Band Directional Couplers
MegaPhase Model No. | Type | Frequency Range (GHz) | Connectors | Coupling (dB, Nom.) | Frequency Sensitivity (dB, Max.) | Directivity (dB, Min.) | Insertion Loss (dB, Max) | Main Line VSWR | Coupled Line VSWR | Size |
|
DC3-3N-.32 | 3 dB | .13-.520 | NF (C-5352-dB will be dual directional) | 3 to 40* (40 dB is 30 w/ internal pad) | 1 to 2 | 18 (3-7 dB) 20 (10+ dB) | 0.3 dB above theoretical coupling loss | 1.3 | 1.3 | 5.80 x 2.00 x 1.00 |
|
DC3-4N-.32 | 4 dB |
|
DC3-5N-.32 | 5 dB |
|
DC3-6N-.32 | 6 dB |
|
DC3-7N-.32 | 7 dB |
|
DC3-10N-.32 | 10 dB |
|
DC3-15N-.32 | 15 dB |
|
DC3-20N-.32 | 20 dB |
|
DC3-30N-.32 | 30 dB |
|
DC7-5N-1.5G | 5 dB | .38-2.7 | N-F | 5 to 30 dB | 1 | 20 | 0.7 | 1.35 | 1.35 | 6.46 x 1.21 x .72 343 312 283 |
|
DC7-6N-1.5G | 6 dB |
|
DC7-7N-1.5G | 7 dB |
|
DC7-10N-1.5G | 10 dB |
|
DC7-15N-1.5G | 15 dB |
|
DC7-20N-1.5G | 20 dB |
|
DC7-30N-1.5G | 30 dB |
|
DC2-XS-.75G* | 6, 10, 15, 20, 30 dB | 0.5 – 1.0 | SMA -F | 6, 10, 15, 20, 30 Db * | 1 | 20 dB (up to 4GHz) | 0.6 | 1.3 (up to 4GHz) | 1.3 (up to 4GHz) | 4.40 x .73 x .50 |
DC4-XS-1.25G* | 0.5 – 2.0 | 4.40 x .73 x .50 |
DC4-XS-1.7G* | 0.7 – 2.7 | 4.40 x .73 x .50 |
DC2-XS-1.5G* | 1.0 – 2.0 | 15 dB (up to 12GHz) | 1.5 (up to 12GHz) | 1.5 (up to 12GHz) | 3.50 x .73 x .50 |
DC4-XS-2.5G* | 1.0 – 4.0 | 3.50 x .73 x .50 |
DC2-XS-3G* | 2.0 – 4.0 | 2.25 x .73 x .50 |
DC2-XS-3.9G* | 2.6 – 5.2 | 12 dB (up to 18GHz) | 1.7 (up to 18GHz) | 1.7 (up to 18GHz) | 2.25 x .73 x .50 |
DC2-XS-6G* | 4.0 – 8.0 | 1.10 x .65 x .50 |
DC2-XS-9.5G* | 7.0 – 12.4 | 1.10 x .65 x .50 |
DC2-XS-15G* | 12.0– 18.0 | 1.10 x .65 x .50 |
